TRIDENT PRO
ADVANCED WHOLE HOUSE FANS™
HOW QUIETCOOL WORKS
RUN YOUR A/C
Run your a/c during the middle of the day when it is the hottest outside.
OPEN WINDOWS
Any time it’s cooler outside than inside, typically in the morning and evening, turn off your a/c system and open a few windows.
TURN IT ON
Now that your windows are open, turn your QuietCool fan on by setting the speed and timer.
BRING FRESH AIR IN

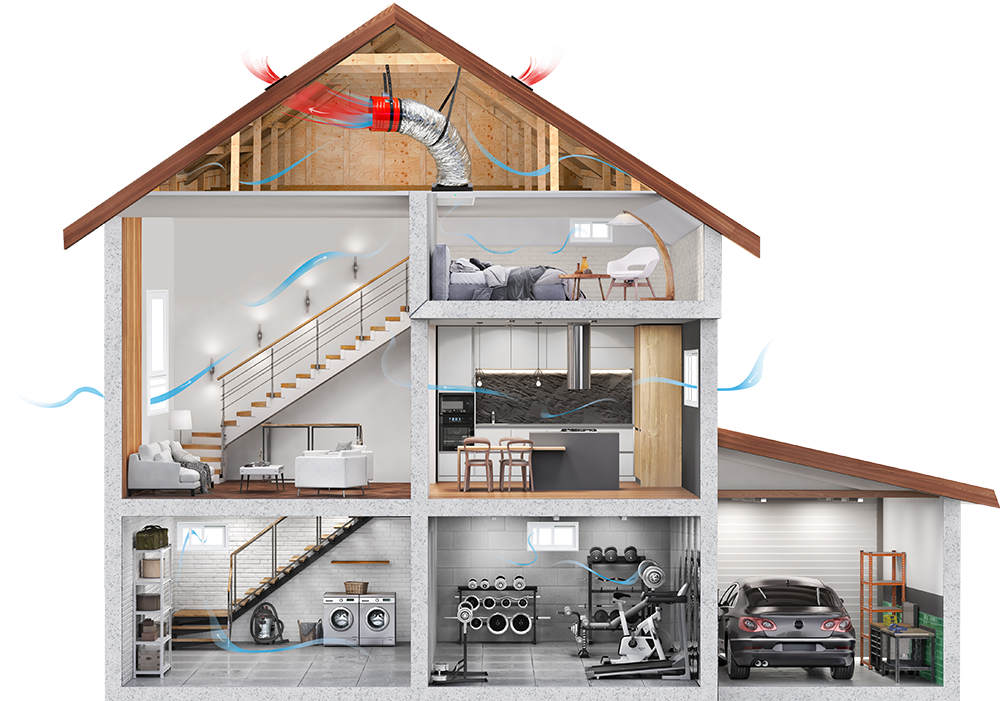

QuietCool pulls in cool, fresh air from outside and expels hot, stale air out attic vents, cooling the thermal mass of your home.
THERMAL MASS COOLING
As the QuietCool changes the air in the home 15 to 22 times per hour, the mass of the home is cooled down.
ENJOY COMFORT & SAVINGS
Your home has now been made cooler, healthier, and more comfortable, all while cutting back on running your a/c system during peak hours.
WHAT IS A Advanced WHOLE HOUSE FAN?
- SAVE UP TO 50-90% ON A/C COST
- Extend the life of your A/C system
- Instant comfort
- Balance your home
- Eliminate odors
- Improve indoor air quality
A Fraction of Energy for Double the Cooling™
Our Trident Pro X Series Advanced Whole House Fan is ideal for any home in need of maximum airflow. Our patented design, strong airflow, and dependable production ensure you’ll get the best cooling available.
- TRI PRO-1.5X
- TRI PRO-2.5X
- TRI PRO-3.3X
- TRI PRO-4.8X
- TRI PRO-5.5X
- TRI PRO-6.0X
- TRI PRO-7.0X
TRIDENT PRO-1.5X
Permanent Split Capacitor Motor (PSC)
As low as 115 Watts
Up to 1,498 CFM
SPECS
-
Covers 499 SQFT to 749 SQFT
-
CFM 1,498
-
Recommended Attic Venting 2 SQFT
-
Grille Size 16” x 16”
-
Watts 115
-
dBA (Sound Level) 37.4
-
Volts 120V
-
Vertical Adapter VA-1414 (optional)
TRIDENT PRO-2.5X
Permanent Split Capacitor Motor (PSC)
As low as 198 Watts
Up to 2,490 CFM
SPECS
-
Covers 830 SQFT to 1,245 SQFT
-
CFM Hi: 2,490 / Low: 1,934
-
Recommended Attic Venting 3.32 SQFT
-
Grille Size 16” x 20”
-
Watts Hi: 244 / Low: 198
-
dBA (Sound Level) Hi: 43.2 / Low: 37.4
-
Volts 120V
-
Vertical Adapter VA-1418 (optional)
TRIDENT PRO-3.3X
Permanent Split Capacitor Motor (PSC)
As low as 274 Watts
Up to 3,216 CFM
SPECS
-
Covers 1,072 SQFT to 1,608 SQFT
-
CFM Hi: 3,216 / Low: 2,890
-
Recommended Attic Venting 4.29 SQFT
-
Grille Size 16” x 24”
-
Watts Hi: 323 / Low: 274
-
dBA (Sound Level) Hi: 49.4 / Low: 46.8
-
Volts 120V
-
Vertical Adapter VA-1422 (optional)
TRIDENT PRO-4.8X
Permanent Split Capacitor Motor (PSC)
As low as 417 Watts
Up to 4,428 CFM
SPECS
-
Covers 1,476 SQFT to 2,214 SQFT
-
CFM Hi: 4,428 / Low: 3,436
-
Recommended Attic Venting 5.91 SQFT
-
Grille Size 16” x 32”
-
Watts Hi: 555 / Low: 417
-
dBA (Sound Level) Hi: 49.4 / Low: 43.2
-
Volts 120V
-
Vertical Adapter VA-1430 (optional)
TRIDENT PRO-5.5X
Permanent Split Capacitor Motor (PSC)
As low as 522 Watts
Up to 5,068 CFM
SPECS
-
Covers 1,689 SQFT to 2,534 SQFT
-
CFM Hi: 5,068 / Low: 4,438
-
Recommended Attic Venting 6.76 SQFT
-
Grille Size 16” x 32”
-
Watts Hi: 632 / Low: 522
-
dBA (Sound Level) Hi: 51.2 / Low: 45.7
-
Volts 120V
-
Vertical Adapter VA-1430 (optional)
TRIDENT PRO-6.0X
Permanent Split Capacitor Motor (PSC)
As low as 560 Watts
Up to 5,708 CFM
SPECS
-
Covers up to 1,903 SQFT to 2,854 SQFT
-
CFM Hi: 5,708 / Low: 4,319
-
Recommended Attic Venting 7.62 SQFT
-
Grille Size 16” x 38”
-
Watts Hi: 777 / Low: 560
-
dBA (Sound Level) Hi: 51.1 / Low: 44.1
-
Volts 120V
-
Vertical Adapter VA-1436 (optional)
TRIDENT PRO-7.0X
Permanent Split Capacitor Motor (PSC)
As low as 797 Watts
Up to 7,015 CFM
SPECS
-
Covers up to 2,338 SQFT to 3,507 SQFT
-
CFM Hi: 7,015 / Low: 5,548
-
Recommended Attic Venting 9.36 SQFT
-
Grille Size 16” x 38”
-
Watts Hi: 1,147 / Low: 797
-
dBA (Sound Level) Hi: 54.3 / Low: 47.4
-
Volts 120V
-
Vertical Adapter VA-1436 (optional)
Industry Leading Warranty
With our 15-Year industry-leading warranty, we offer an unmatched promise to our customers.
Motor Technology
QUIET OPERATION
KEEP YOUR HARD-EARNED MONEY
Don’t Spread Airborne Pathogens with recycled air

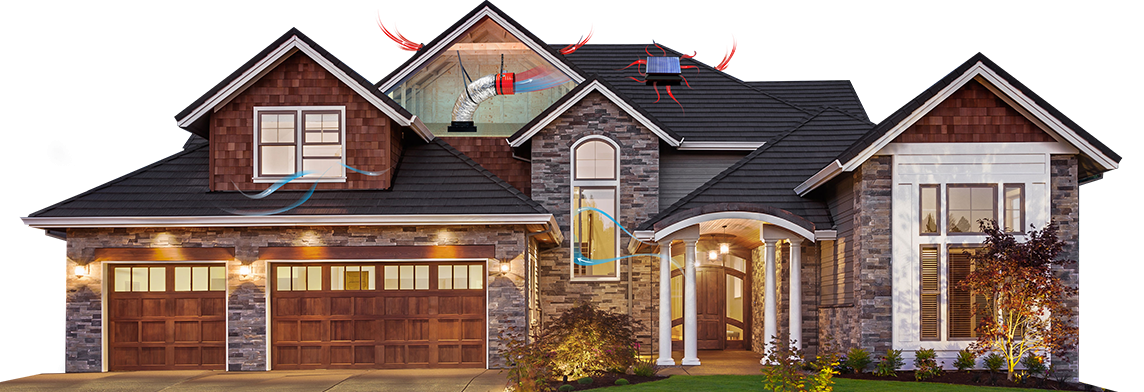

Bring Cool Fresh Air In, Exhaust Hot polluted Air Out!
